Crawler Crane Rental in Cheyenne & Laramie County

Crawler cranes fit the long, heavy jobs around Cheyenne: structural steel and equipment on multi-building data center campuses, power plant construction and wind-turbine component work—projects where one crane stays on site for months.

When a crawler crane is the right choice

Crawler cranes ride on tracks instead of tires. They spread their weight over a large footprint, can travel short distances on site with a load ("pick and carry"), and don't need outriggers. That makes them ideal for:

• Bridge, overpass and highway structures (girders, beams, pile driving).
• Heavy structural steel and precast on large buildings.
• Industrial and energy projects with long schedules.
• Soft or uneven ground where outriggers would need extensive matting.

Planning for a crawler

• Transport: crawlers arrive disassembled on several trucks under oversize/overweight permits and are assembled on site, which adds time and cost—so they make the most sense for projects lasting weeks or months.
• Assembly area: you need laydown space for boom sections and counterweight, plus room for an assist crane.
• Ground preparation: a compacted, level work pad and crane mats are usually required.
• Lift plan: heavy and tandem picks typically need an engineered lift plan.

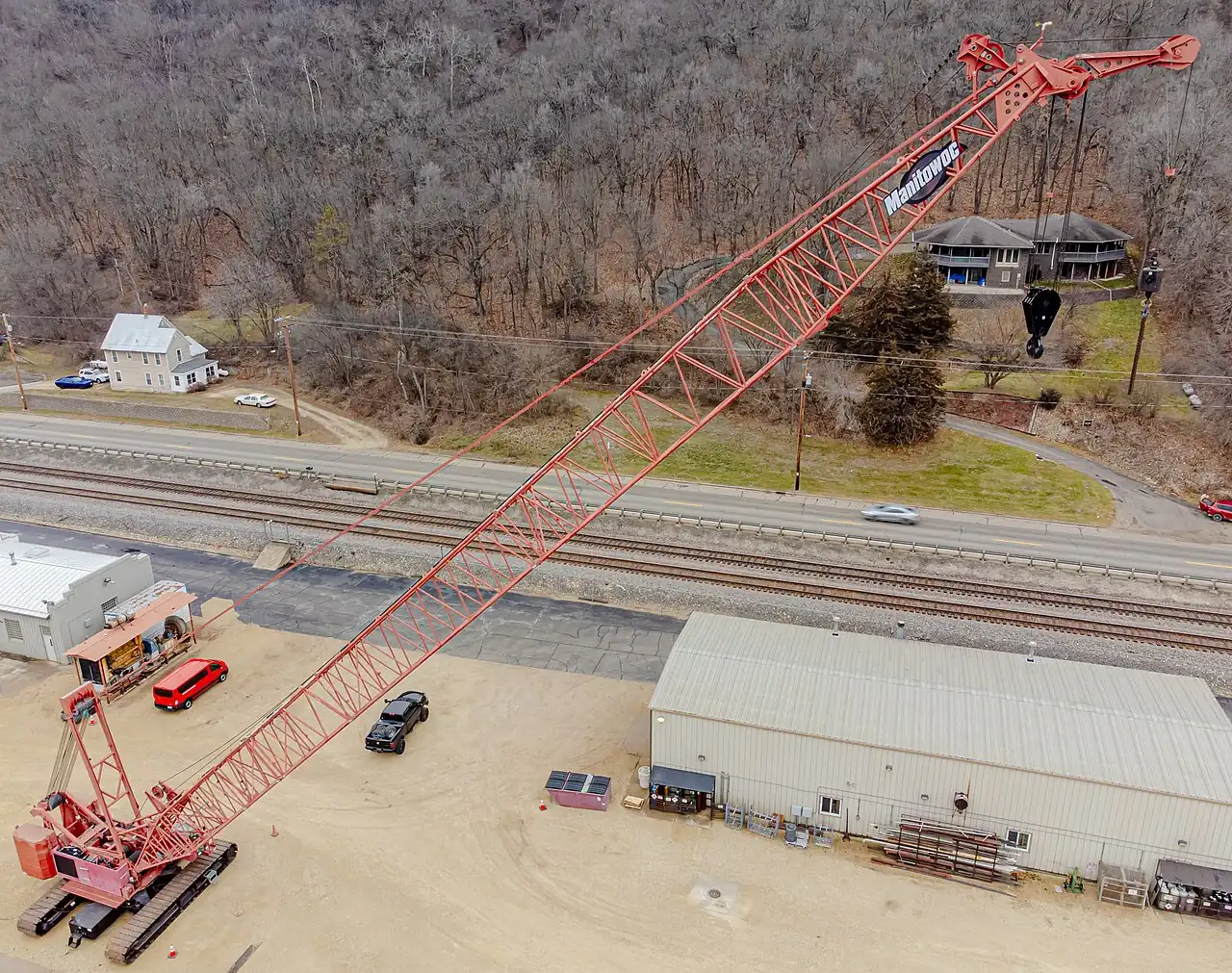

Lattice-boom vs. telescopic crawlers

Lattice-boom crawlers offer the highest capacity and reach for the weight. Telescopic crawlers set up faster and are popular for piling, foundations and mid-size bridge work. The operator will recommend the right configuration after seeing your loads and radii.

*Ranges are typical, not limits. The real capacity of any crane depends on radius, boom length, configuration, counterweight and ground conditions—always check the manufacturer's load chart.

Typical uses in Cheyenne

• Bridge girders
• Overpass & highway work
• Pile driving
• Heavy structural steel
• Long-duration projects

Permits & lift-planning basics

• Qualified people: Federal OSHA rules for construction cranes (29 CFR 1926 Subpart CC) require certified or qualified operators, qualified riggers and signal persons, and adequate ground conditions. Ask the operator for current certifications and a certificate of insurance before work starts.
• Power lines: OSHA generally requires keeping cranes at least 20 feet from power lines up to 350 kV unless the utility de-energizes the line or a specific clearance plan is in place. Call the utility early if lines are close.
• Ground and outriggers: Outrigger loads can be very high. Know where underground tanks, vaults, septic systems and utilities are; operators use crane mats or pads to spread the load.
• Moving the crane: Large cranes and their counterweights travel under Wyoming oversize/overweight permits, handled through the Wyoming Highway Patrol and its ports of entry. A crane coming from or going to Colorado or Nebraska needs that state's permit too, and winter weather or high-wind restrictions on I-80 and I-25 can change routing and timing.
• Streets and right-of-way: Setting up on a public street or sidewalk usually needs a permit or approval from the city or county—check with Cheyenne or Laramie County before the lift date.
• Airspace: Cranes taller than 200 feet, or near a public-use airport such as Cheyenne Regional Airport (CYS), may need an FAA Form 7460-1 notice filed at least 45 days before the crane goes up.
• Critical lifts: Many contractors require a written lift plan for picks above roughly 75% of chart capacity, tandem lifts, lifts over occupied areas or personnel lifts.
